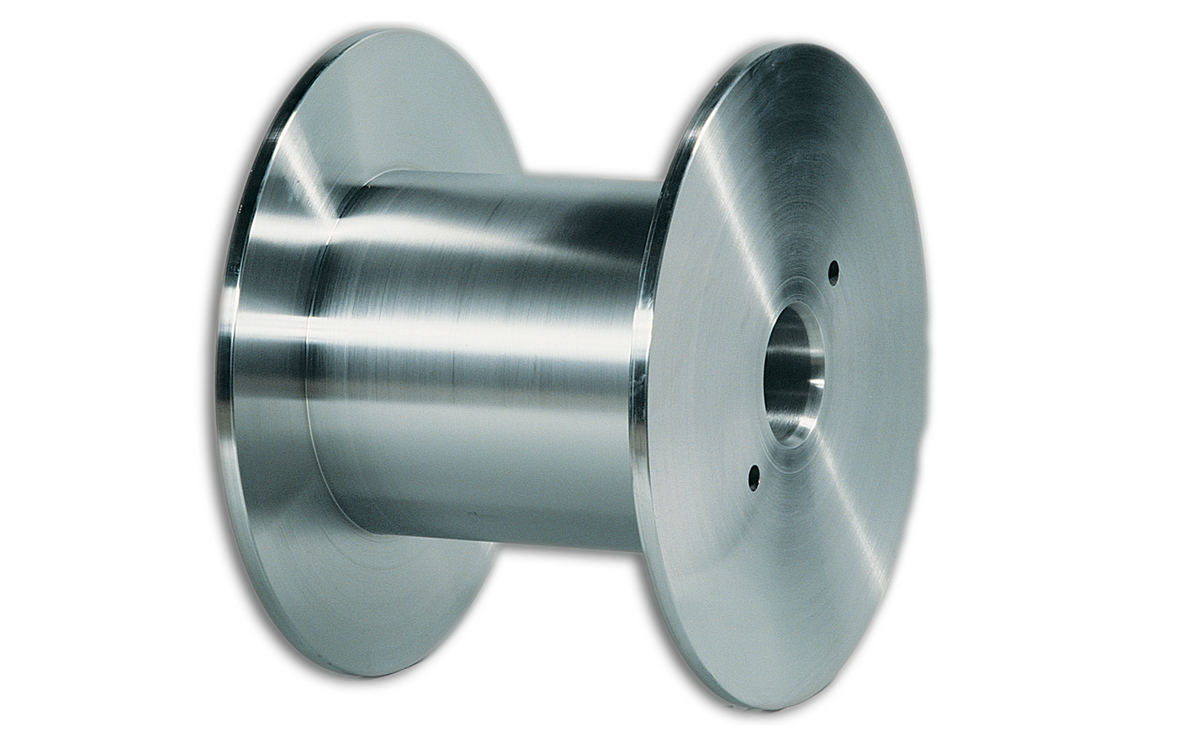

Wire Drawing Reel – SF


Pentre Group Wire Drawing Reels – SF type, are fully machined, in-process take up reels that are custom designed for use in the manufacture of ferrous and non-ferrous bare wire products.



Available in a wide range of both Metric and Imperial flange diameters from 400mm to 1250mm and 16” to 48”, reels are manufactured to DIN 46397, as well as bespoke customer requirements.

Capable of operating to speeds in excess of 40 metres per second, makes them ideal for use in multiwire and single wire drawing machine, as well as subsequent manufacturing processes such as bunching and stranding. Their robust design also makes them suitable for annealing.

Suitable for use across a wide range of products including:

  • Multiwire, plain and tinned copper from 6/0.02mm to 12/0.4mm diameter
  • Plain and tinned single ends of copper from 0.1mm to 3.5mm diameter
  • Single ends of aluminium from 1mm to 5mm diameter
  • Enamelled wire manufacture

All Pentre Group reels are manufactured from high quality, certified, prime steel plate and tube and are welded by MIG process, with all welds and weld preparations conforming to BS5135.



Precision machining by CNC lathes, results in minimum flange distortion to ensure uniform traversing and high speed pay off and enables use in robotic handling systems and automatic handling systems.

Reels are dynamically balanced to ISO1940 and are capable of operating to speeds of up to 40 metres per second.

  • A wide range of non standard sizes, in both metric or imperial dimensions
  • Reels can be dynamically balanced to operate up to 60m per second
Click here to view DIN 46397 Technical Data

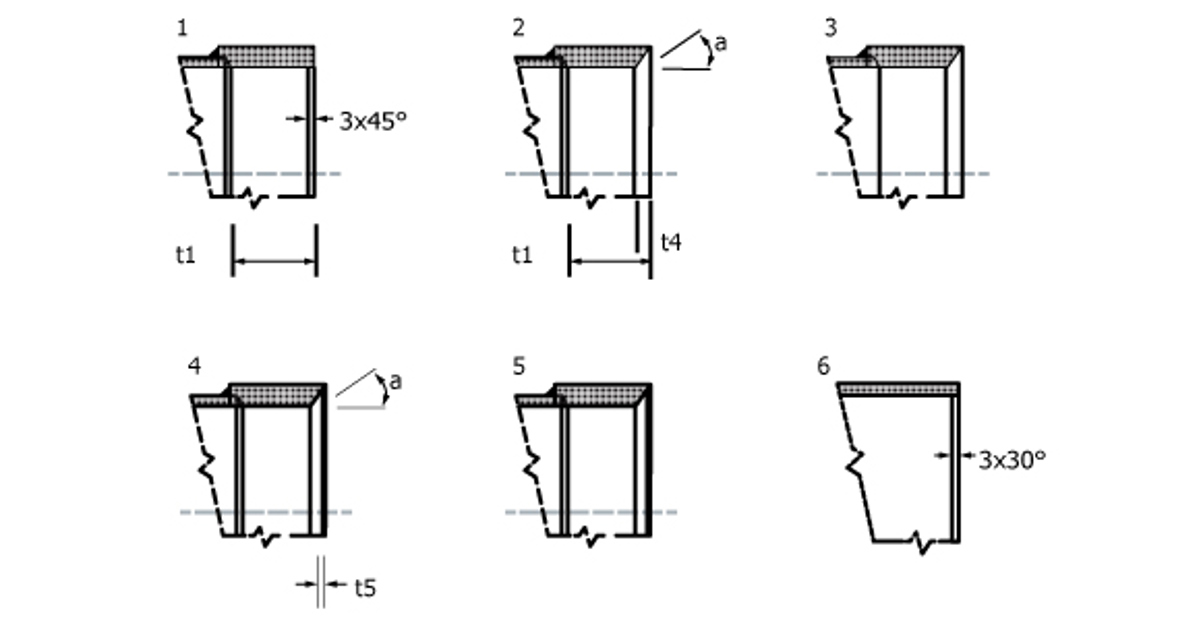

Product Dimensions


Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • d3 = Outside diameter
  • d4 = Bore diameter
  • d5 = Drive hole/Pin diameter
  • e1 = Drive radius
  • L1 = Through bore
  • L2 = Traverse
d1 d2 d3 d4 d5 e1 l1 l2 Vol. dm3
400 224 160 127 28 100 236 200 17.3
400 224 160 127 28 100 300 250 21.6
400 250 160 127 28 100 300 250 19.1
400 280 160 127 28 100 300 250 16.0
450 250 160 127 28 100 265 224 24.6
450 250 160 127 28 100 335 280 30.8
450 280 160 127 28 100 335 280 27.3
450 315 160 127 28 100 335 280 22.7
500 280 160 127 28 100 300 250 33.7
500 280 160 127 28 100 375 315 42.5
500 315 160 127 28 100 375 315 37.5
500 355 160 127 28 100 375 315 30.7
560 315 160 127 28 100 335 280 47.1
560 315 160 127 28 100 425 355 59.8
560 355 160 127 28 100 425 355 52.3
560 400 – 127 28 100 425 355 42.8
630 355 160 127 28 100 375 315 67.0
630 355 160 127 28 100 475 400 86.2
630 400 160 127 28 100 475 400 74.4
630 450 160 127 28 100 475 400 61.1
710 400 300 250 40 170 425 355 95.9
710 400 300 250 40 170 530 450 121.6
710 450 300 250 40 170 530 450 106.6
710 550 300 250 40 170 530 450 89.8
800 450 300 250 40 170 475 400 137
800 450 300 250 40 170 600 500 172
800 500 300 250 40 170 600 500 153
800 560 300 250 40 170 600 500 128
1000 560 300 250 50 250 750 630 340
1000 630 300 250 50 250 750 630 298
1000 710 300 250 50 250 750 630 245
1250 710 300 250 50 250 950 800 665
1250 800 300 250 50 250 950 800 580
1250 900 300 250 50 250 950 800 473
