Large Pakspools

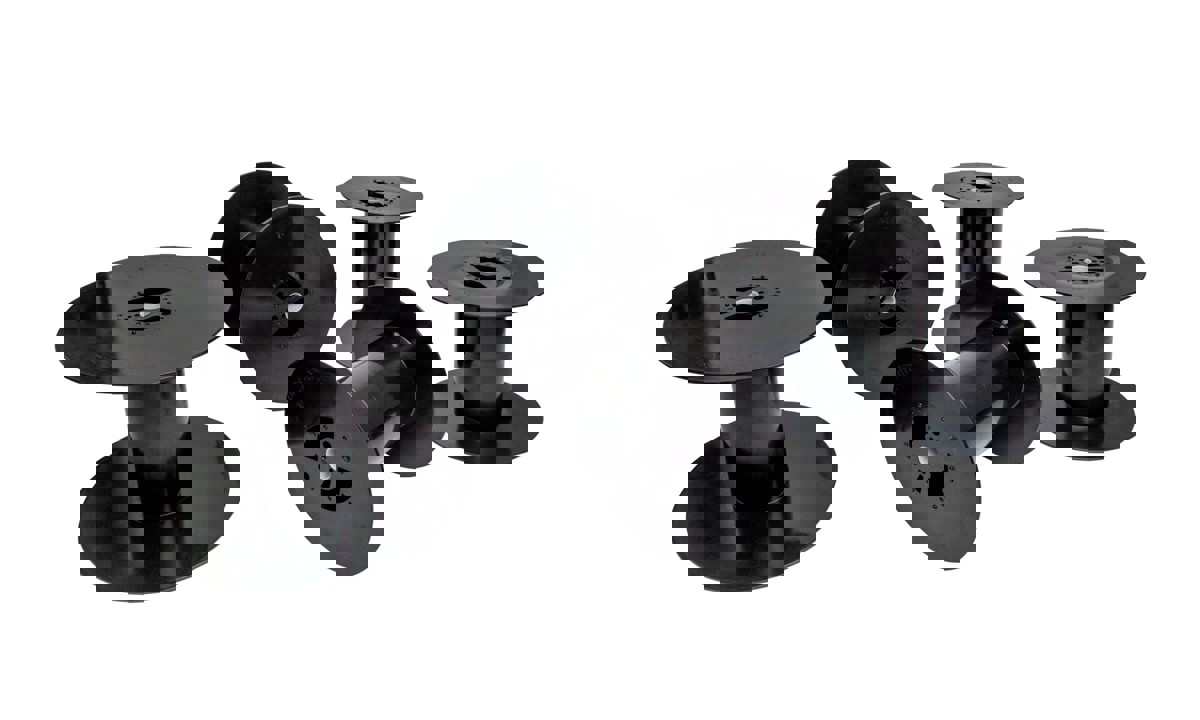

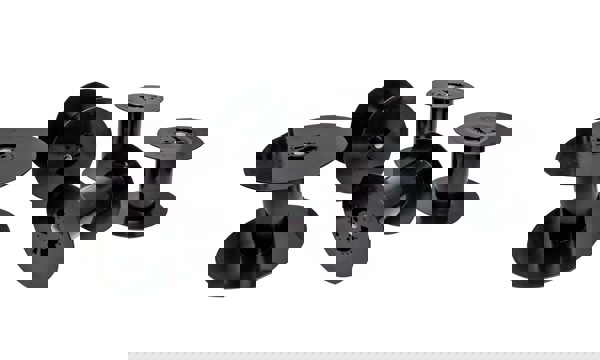

Pentre Group Large Pakspools are lightweight, multi-purpose spools. Available in a variety of flange diameters and traverse lengths they can accommodate a wide range of products, in a variety of lengths.

Suitable for use across a wide range of products including:

  • Thermoplastic High Heat-resistant Nylon coated (THHN) wire
  • Speaker wire
  • Coaxial cuable
  • Chain Tubing
  • Cord and rope
  • Fabrics and tapes
  • Plastic zipper
  • Cable cross fillers

Reels are of a two piece design homogenously bonded at the barrel centre. Reels are generally manufactured from high grade Acrylonitrile Butadiene Styrene (ABS) Recycled Industrial Black. Other materials and colours available on request.

  • Custom colours are available in ABS
  • Various drive options, from a common bore of 41mm diameter.
Click here to view Technical Data

Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • d3 = Bore diameter
  • L1 = Overall length
  • L2 = Traverse
Product Code Material d1 d2 d3 L1 L2
4200-80602 / 4200-80607 ABS 408 200 41 or 45 412 400
4200-80606 / 4200-80608 ABS 408 200 41 or 45 342 330
4200-80614 / 4200-80615 ABS 408 200 41 or 45 377 365
4200-80601 / 4200-80609 ABS 450 200 41 or 45 342 330
4200-80604 / 4200-80610 ABS 500 200 41 or 45 346 330
4200-80616 / 4200-80617 ABS 500 200 41 or 45 381 365
4200-80605 / 4200-80611 ABS 500 200 41 or 45 416 400
4200-80618 / 4200-80619 ABS 500 200 41 or 45 431 415
4200-80620 / 4200-80621 ABS 500 200 41 or 45 466 450
4200-80603 / 4200-80612 ABS 500 200 41 or 45 512 500
4200-81201 / 4200-80613 ABS 590 200 41 or 45 400 386



All measurements and weights as stated on this drawing are approximate figures.
Tolerances and deviations as customary in this trade are reserved.

Click here to view Delivery Specifications
Product Code Winding vol Per pallet Reel mass Pallet weight
4200-80602 / 4200-80607 39000 60 2800 g 182 kg
4200-80606 / 4200-80608 32000 60 2650 g 174 kg
4200-80614 / 4200-80615 36000 60 2725 g 179 kg
4200-80601 / 4200-80609 41500 60 3000 g 206 kg
4200-80604 / 4200-80610 54000 54 4035 g 233 kg
4200-80616 / 4200-80617 60000 45 4050 g 198 kg
4200-80605 / 4200-80611 65500 45 4065 g 198 kg
4200-80618 / 4200-80619 68000 36 4320 g 171 kg
4200-80620 / 4200-80621 74000 36 4335 g 171 kg
4200-80603 / 4200-80612 82000 36 4600 g 181 kg
4200-81201 / 4200-80613 89000 30 5250 g 173 kg
