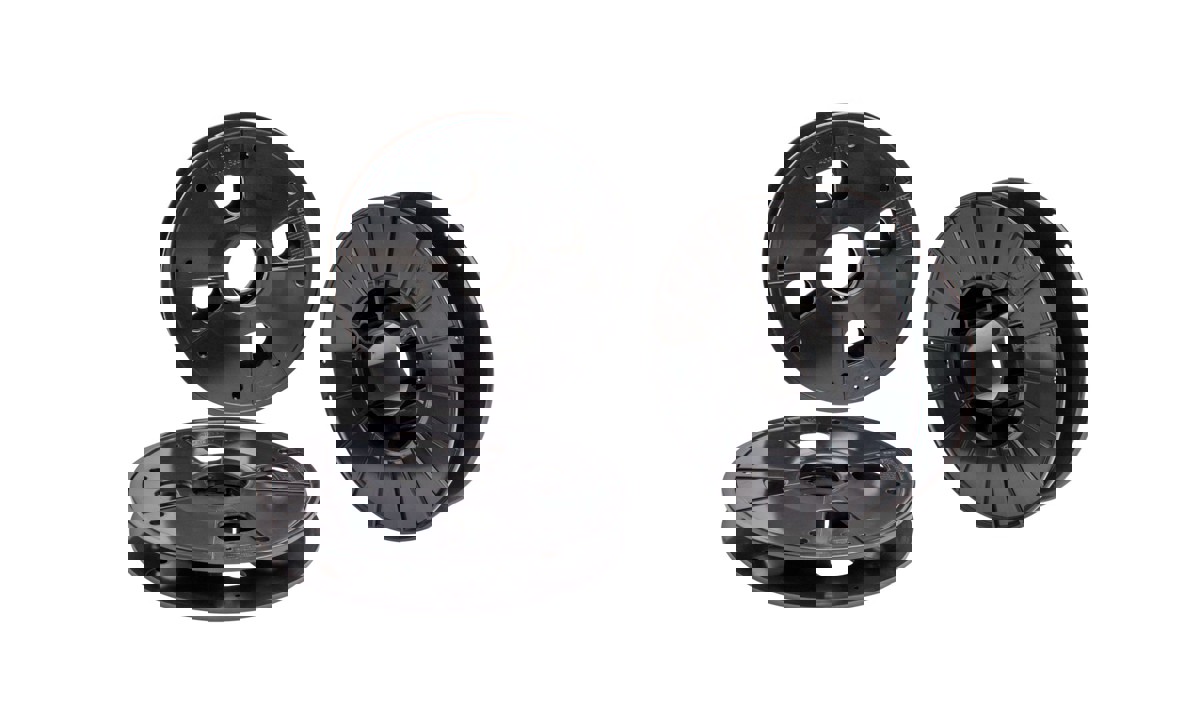

3D Printer Spools


Pentre Group 3D Printer Spools are available in a range of sizes to fit a variety of 3D Printers.



Developed in collaboration with leading machine manufacturers and customers, these standard reels are available from stock. Bespoke Spools can be designed and developed to your own specification in conjunction with our design team.

  • Suitable for various filaments, such as PLA and ABS.

Generally a two piece construction.

  • Additional colours are available
  • Bespoke tooling available on large quantities
Click here to view Technical Data

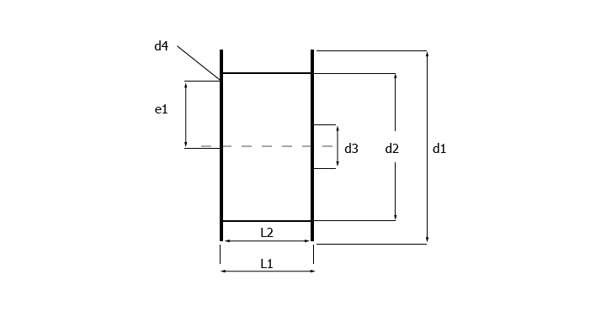

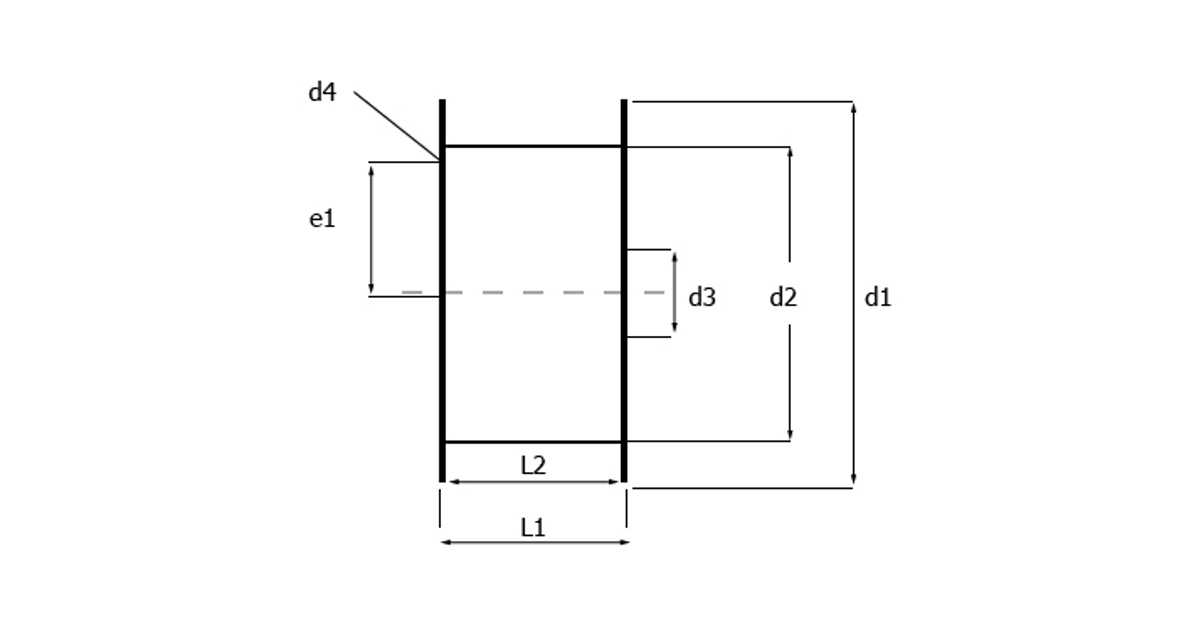

Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • d3 = Bore dimension
  • d4 =Drive hole diameter
  • e1 = Drive radius
  • L1 = Overall dimension
  • L2 = Traverse
Product Code d1 d2 d3 d4 l1 l2 e1
4500 833 01 212 65 50 40 32
4500 833 03 212 65 50 24 16
4500 833 02 212 65 50 32 24
4400 803 01 200 102 50.5 10 55 45 44.5



All measurements and weights as stated on this drawing are approximate figures.
Tolerances and deviations as customary in this trade are reserved.

Click here to view Delivery Specifications
Product Code Per pallet Pallet size Spool mass Pallet wght
4500 833 01 1008 1200 x 1000 210g 236kg
4500 833 02 1008 1200 x 1000 210g 236kg
4500 833 03 1008 1200 x 1000 210g 236kg
4400 803 01 768 1200 x 1000 200g 178kg
