Metal Stamping Reels

Description

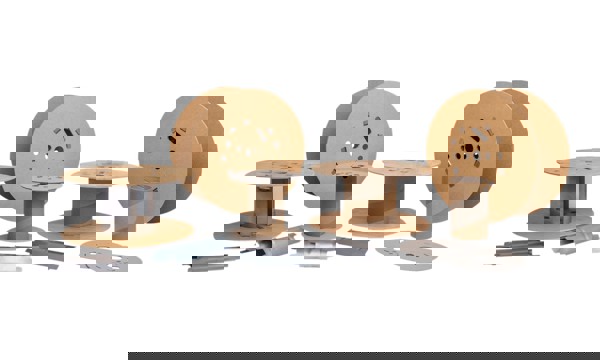

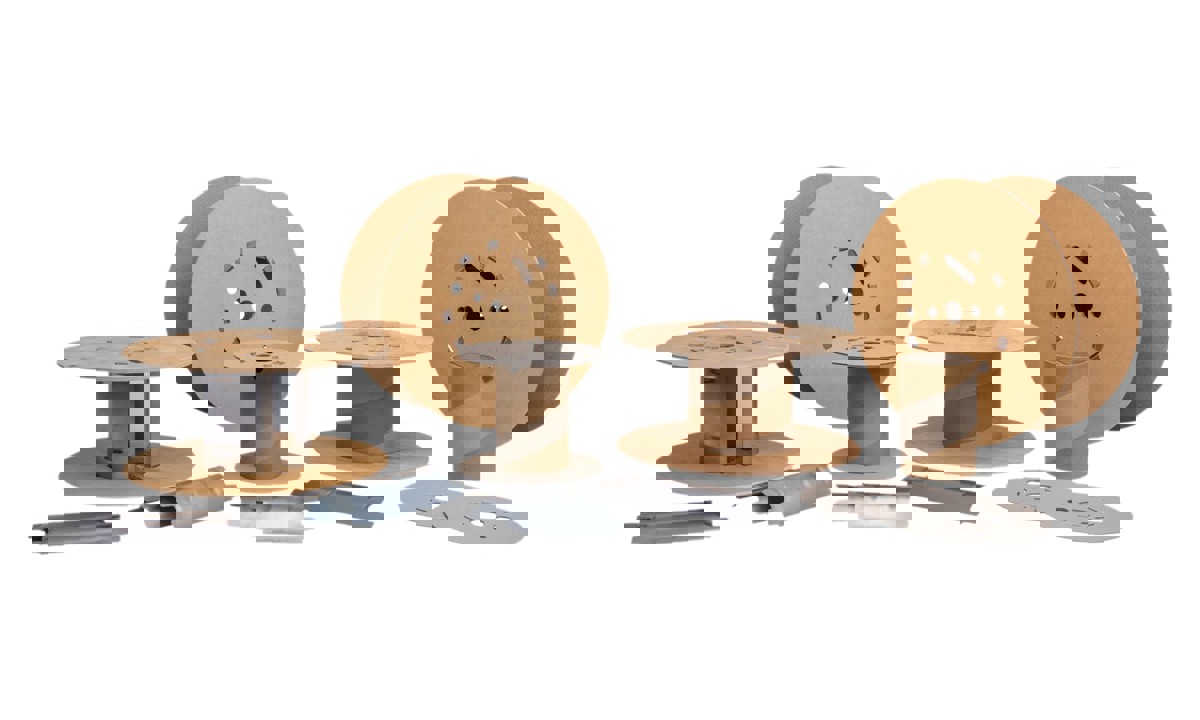

Pentre Group Metal Stamping Reels are a cost effective and versatile reel. Suitable for the storing and transporting of a variety of products including, cable, wire and plastic tubing, they can be supplied complete or in kit form for easy assembly on site.

Products

Suitable for use across a wide range of products including:

Cable
Wire
Plastic tubing

Specifications

Flange constructed from Plywood, Hardboard, MDF or Cardboard
Cardboard Hub or Cardboard Wraparound
Metal Stamping from 0.9mm to 1.2mm gauge

Options

Flange can be printed with your company name and logo.

Click here to view Technical Data

Product Dimensions

Key

A = Flange diameter
B = Barrel diameter

C = Barrel length

D = Centre hole diameter

Flange Materials	Metal Stamping	A	B	C	D
Plywood 6mm	0.9 to 1.2 gauge	178 to 600	100 to 250	75 to 400	27 to 33
Hardboard 4.8mm	0.9 to 1.2 gauge	178 to 600	100 to 250	75 to 400	27 to 33
MDF 6mm	0.9 to 1.2 gauge	178 to 600	100 to 250	75 to 400	27 to 33
Cardboard 2.4 to 4mm	0.9 to 1.2 gauge	178 to 600	100 to 250	75 to 400	75
