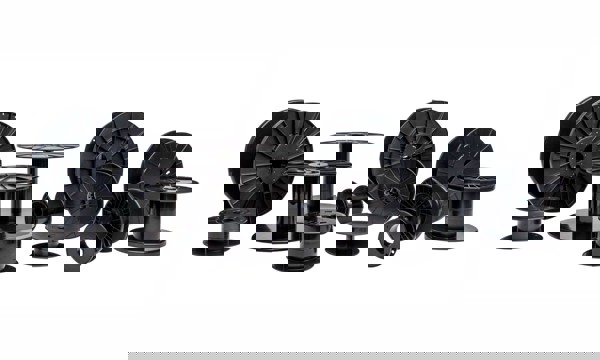

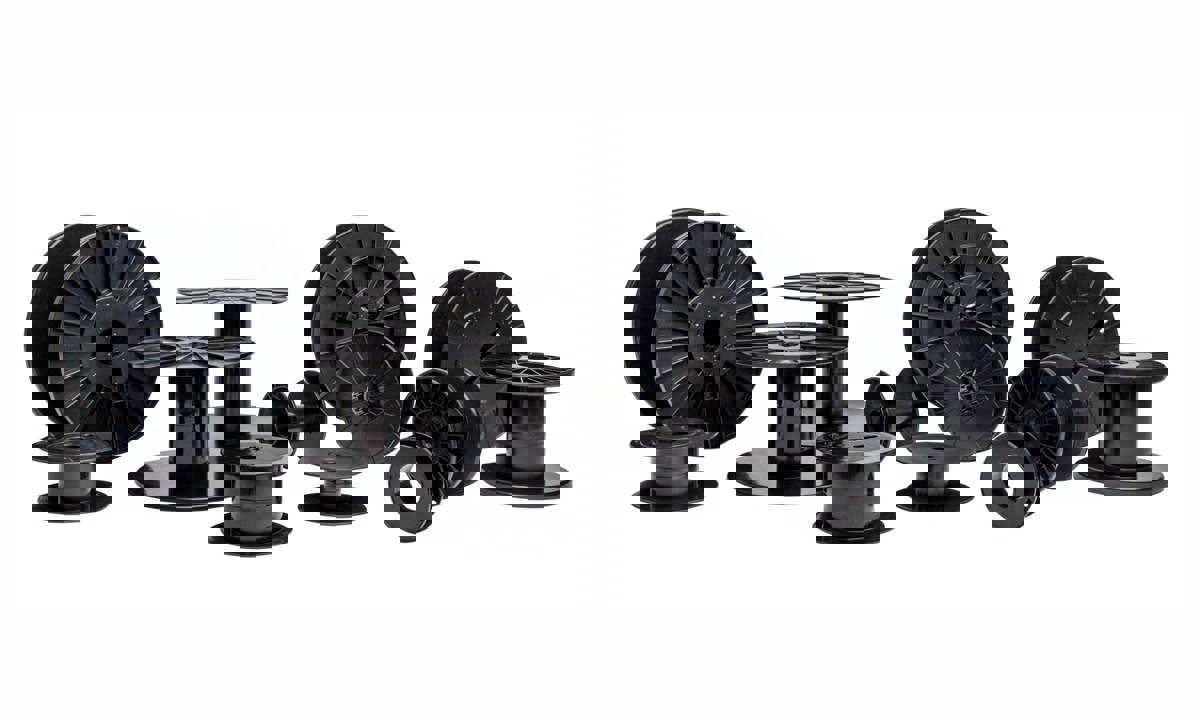

Pentre Group Pakspools are lightweight, durable spools. Available in a variety of traverse lengths they can accommodate a wide range of products, in a variety of lengths. Supplied as one or two piece spools, male and female halves are homogeneously bonded at the barrel centre.
Suitable for use across a wide range of products including:
Reels are generally manufactured from high grade Acrylonitrile Butadiene Styrene (ABS) Recycled Industrial Black. Other materials and colours available on request.
Key
|
|
|
| Product Code | d1 | d2 | d3 | d5 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 3102-37201 | 275 | 160 | 38.2 | n/a | 185 | 170 | n/a |
| 3102-37202 | 275 | 160 | 38.2 | n/a | 105 | 90 | – |
| 3102-37203 | 280 | 87 | 38.2 | n/a | 160 | 145 | – |
| 3102-37603 | 164.8 | 86.8 | 38.2 | n/a | 65 | 59 | – |
| 4200-08402 | 100 | 50 | 47.5 | – | 40 | 32 | – |
| 4200-75503 | 114 | 35 | 29 | – | 102 | 92 | – |
| 4200A78803 | 150 | 56 | 18 | – | 53 | 46 | – |
| 4200A78802 | 150 | 56 | 18 | – | 77 | 69 | – |
| 4200A78804 | 150 | 56 | 18 | – | 100 | 92 | – |
| 4200a72001 | 175 | 60 | 47.5 | – | 60 | 50 | – |
| 4200a72003 | 175 | 60 | 47.5 | – | 85 | 75 | – |
| 4200a72002 | 175 | 60 | 47.5 | – | 110 | 100 | – |
| 4200a78501 | 250 | 150 | 18 | – | 80 | 70 | – |
| 4200a78304 | 255 | 118 | 33 | 13 | 115 | 100 | 13 |
| 4200a78305 | 255 | 118 | 33 | 13 | 165 | 150 | 13 |
| 4200a78306 | 255 | 118 | 33 | 13 | 215 | 200 | 13 |
| 4200a77001 | 275 | 160 | 26 | – | 68 | 53 | – |
| 4200a77002 | 275 | 160 | 26 | – | 105 | 90 | – |
| 4200a77003 | 275 | 160 | 26 | – | 185 | 170 | – |
| 4200a77004 | 275 | 160 | 26 | – | 86.5 | 71.5 | – |
| 4200a77005 | 275 | 160 | 26 | – | 126.5 | 111.5 | – |
| 4200a77006 | 275 | 160 | 26 | – | 145 | 130 | – |
| 4200a78101 | 280 | 150 | 18 | – | 80 | 70 | – |
| 4200a78201 | 305 | 125 | 38 | – | 82 | 52 | – |
| 4200a76601 | 315 | 76 | 27.5 | – | 200 | 196 | – |
| 4500A82902 | 160 | 104 | 22 | – | 83 | 100 | – |
| 4500A82903 | 160 | 104 | 22 | – | 93.5 | 89.5 | – |
| 4500A82901 | 160 | 104 | 22 | – | 104 | 79 | – |
| 4500A83001 | 215 | 104 | 22 | – | 84 | 79 | – |
| 4500A83004 | 215 | 104 | 22 | – | 94.5 | 89.5 | – |
| 4500A83002 | 215 | 104 | 22 | – | 105 | 100 | – |
| 4500A83005 | 215 | 104 | 22 | – | 127 | 122 | – |
| 4500A83006 | 215 | 104 | 22 | – | 137.5 | 132.5 | – |
| 4500A83003 | 215 | 104 | 22 | – | 170 | 165 | – |
All measurements and weights as stated on this drawing are approximate figures.
Tolerances and deviations as customary in this trade are reserved.
