Process Reels for Optic Fibre

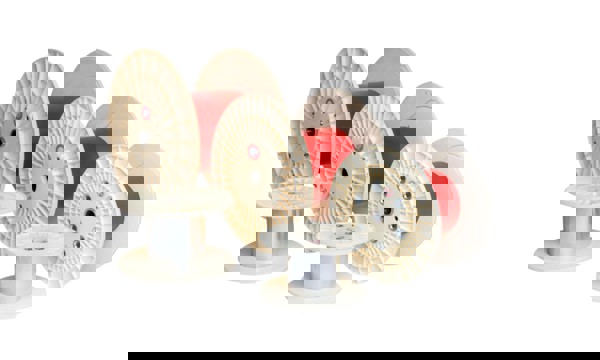

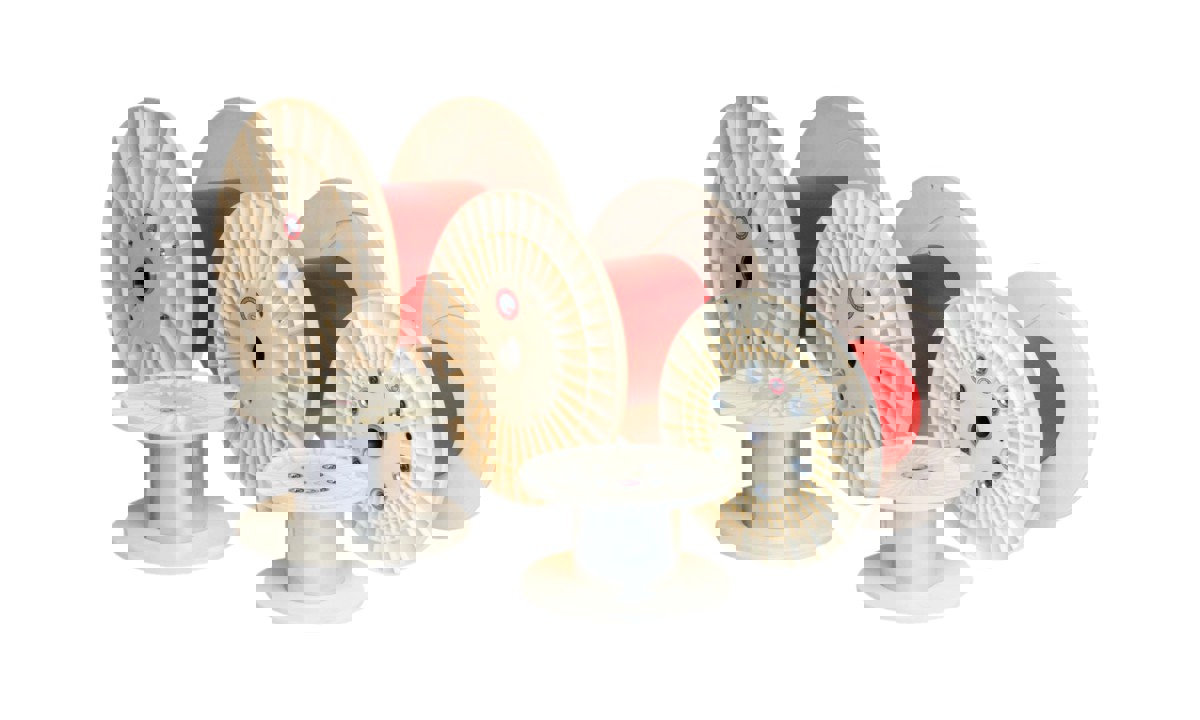

High Performance ABS Flanged Process Reels – Optic Fibre offer an alternative to our standard reel and have been specifically designed for optic fibre tubing.


Hearl Heaton range High Performance ABS Flanged Process Reels – OF offers an alternative to our standard reel. Having been specifically designed for optic fibre tubing, various design features allow access to the inner end of the optic fibre for test purposes.



Available in both metric and imperial sizes from 250mm to 1000mm and 12” to 22, they are suitable for operation at extrusion speeds of up to 1,000 metres per min.

Whilst originally designed for use with optic fibre tubing, their lightweight, strong construction makes them suitable for a variety of applications.

Flanges are moulded from Pentre’s own specially selected, high grade, virgin Acrylonitrile Butadiene Styrene (ABS), which combines strength with lightness, without being brittle.
Barrels are usually manufactured from seam welded, painted mild steel and the CNC machined bosses engineered from mild steel.



Reels are secured using high tensile strength steel bolts and unique locknuts.

  • An extensive range of non-standard traverse widths or barrel diameters
  • Choice of coloured flanges, on bulk quantity orders
  • Barrels can be manufactured from aluminium, ABS or stainless steel
  • Aluminium and stainless steel barrels can be anodized, painted or powder coated
  • Steel barrels can also be galvanised
  • Overall design can be lightened by incorporating aluminium spacer tube and bolts
  • Nylon bushes
  • In-house component replacement service available
Click here to view DIN 46395 Technical Data

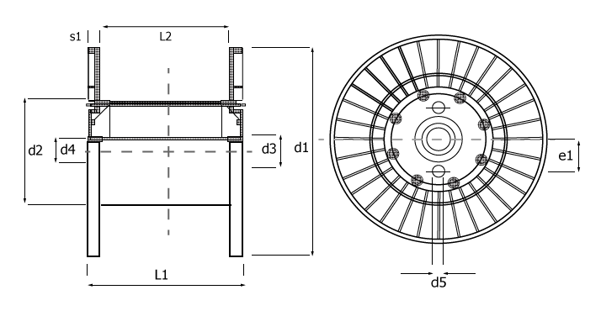

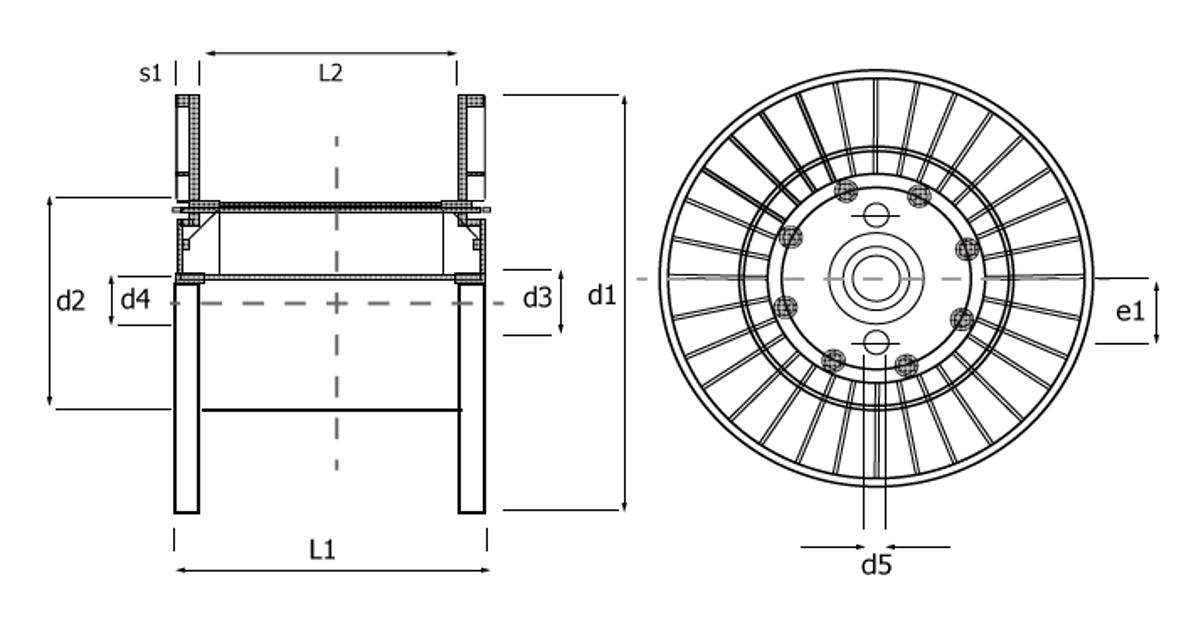

Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • d3 = Outside diameter
  • d4 = Bore diameter
  • d5 = Drive hole/ Pin diameter
  • e1 = Drive radius
  • L1 = Through bore
  • L2 = Traverse

Available DIN Sizes

Product Type d1 d2 d3 d4 d5 e1 L1 L2 Vol.
PFTC400 400 160 73 56 16-28 112 300 250 26
PFTC400 400 200 73 56 16-28 112 236 200 19
PFTC450 450 224 73 56 16-28 112 265 224 27
PFTC500 500 200 73 56 16-28 140 375 315 52
PFTC500 500 250 73 56 16-28 140 300 250 37
PFTC560 560 280 73 56 16-28 140 335 280 52
PFTC630 630 250 73 56 16-28 140 475 400 74
PFTC630 630 315 73 56 16-28 140 375 315 74
PFTC800 800 400 98.5 80 28-40 160 600 500 188
PFTC1000 1000 500 98.5 80 28-40 160 750 630 371
Click here to view Metric Flange/Barrel Combinations

Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • s1 = Flange widths
  • d4 = Bore diameter
  • L1 = Through bore
  • L2 = Traverse

Other Metric Flange/Barrel Combinations

d1 d2 s1
350 180 12.0
400 152 17.0
400 160 17.0
400 200 17.0
400 203 17.0
400 229 17.0
406 160 12.7
406 201 20.6
450 150 20.5
450 203 20.5
450 224 20.5
450 229 20.5
450 170 27.5
450 203 27.5
450 224 27.5
450 250 27.5
457 224 20.7
490 152 17.0
490 250 20.0
490 265 20.0
500 200 20.0
500 247 20.0
500 250 20.0
500 260 20.0
500 280 20.0
500 250 27.5
500 280 27.5
560 250 20.0
560 280 20.0
560 203 27.5
560 250 27.5
560 260 27.5
560 280 27.5
600 250 25.0
600 300 25.0
600 315 25.0
600 355 25.0
630 250 25.0
630 300 25.0
630 315 25.0
630 355 25.0
800 400 40.0
1000 500 40.0

Please Note
Most bore diameters (d4) accommodated, maximum size dependent on each flange configuration
All drive holes, pin diameters (d5) and positions can usually be tailored to suit your exact requirements
The overall width (L1) must be at least the traverse width (L2) + 2 x flange width (s1)

Click here to view Imperial Technical Data

Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • s1 = Flange widths
  • d4 = Bore diameter
  • L1 = Through bore
  • L2 = Traverse

Other Metric Flange/Barrel Combinations

d1 d2 s1
12 6 11/32
16 6 1/2
16 8 1/2
16 6 11/32
16 8 11/32
16 6 13/16
16 8 13/16
16 9 13/16
18 6 13/16
18 8 13/16
18 9 13/16
18 9 1
20 8.5 1
22 10 25/32
22 11 25/32

Please Note
Most bore diameters (d4) accommodated, maximum size dependent on each flange configuration. All drive holes, pin diameters (d5) and positions can usually be tailored to suit your exact requirements
The overall width (L1) must be at least the traverse width (L2) + 2 x flange width (s1)
