Flat Faced Hybrid Pakspools

Description

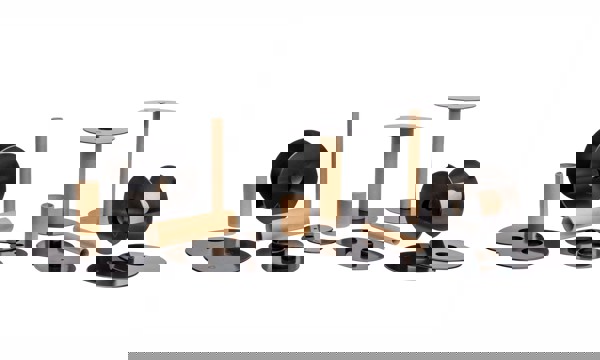

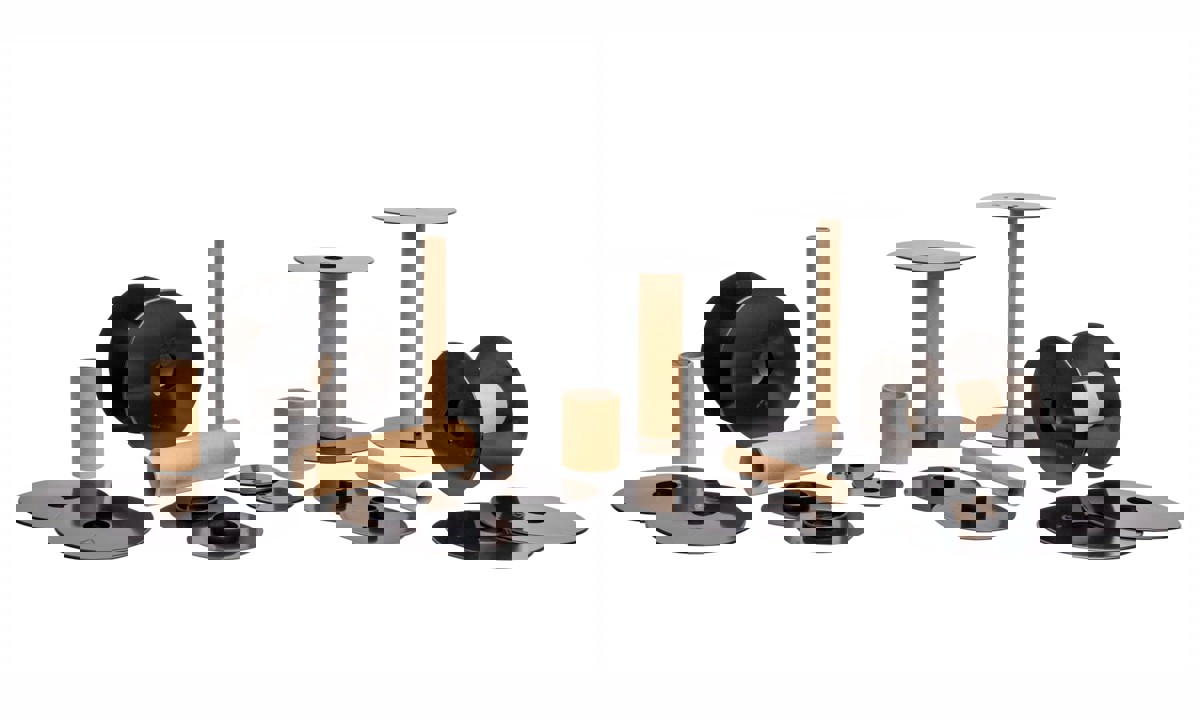

Pentre Group Flat Faced Hybrid Pakspools are cost effective, lightweight, durable spools. Available in a variety of traverse lengths they are particularly suited for use with haberdashery products. Reels can be supplied ready assembled or in kit-form, for assembly on site.

Products

Suitable for use across a wide range of products including:

Data cable
Cordage
Ribbon
Fabrics and tapes

Specifications

The flange is generally manufactured from high grade Acrylonitrile Butadiene Styrene (ABS) Recycled Industrial Black, whilst the barrel is made form 3mm thick heavy duty cardboard.

Options

Click here to view Technical Data

Key

d1 = Flange diameter
d2 = Barrel diameter

L1 = Through bore
L2 = Traverse

Product Code	d1	d2	d3	L1	L2
450083201	90	26	17 or 25	various	various
450083202	120	55	30	various	various
450083203	130	26	17	various	various
450083204	140	44	36	various	various
450083205	152	26	17	various	various
450083206	165	44	36	various	various

All measurements and weights as stated on this drawing are approximate figures.
Tolerances and deviations as customary in this trade are reserved.

Click here to view Delivery Specifications

Product Code	Per pallet	Pallet size	Wght	Pallet Wght
450083201	540	Euro	169g	118kg
450083202	125	Euro	183g	38kg
450083203	280	Euro	275g	103kg
450083204	224	Euro	275g	78kg
450083205	140	Euro	332g	63kg
450083206	–	–	–	–
