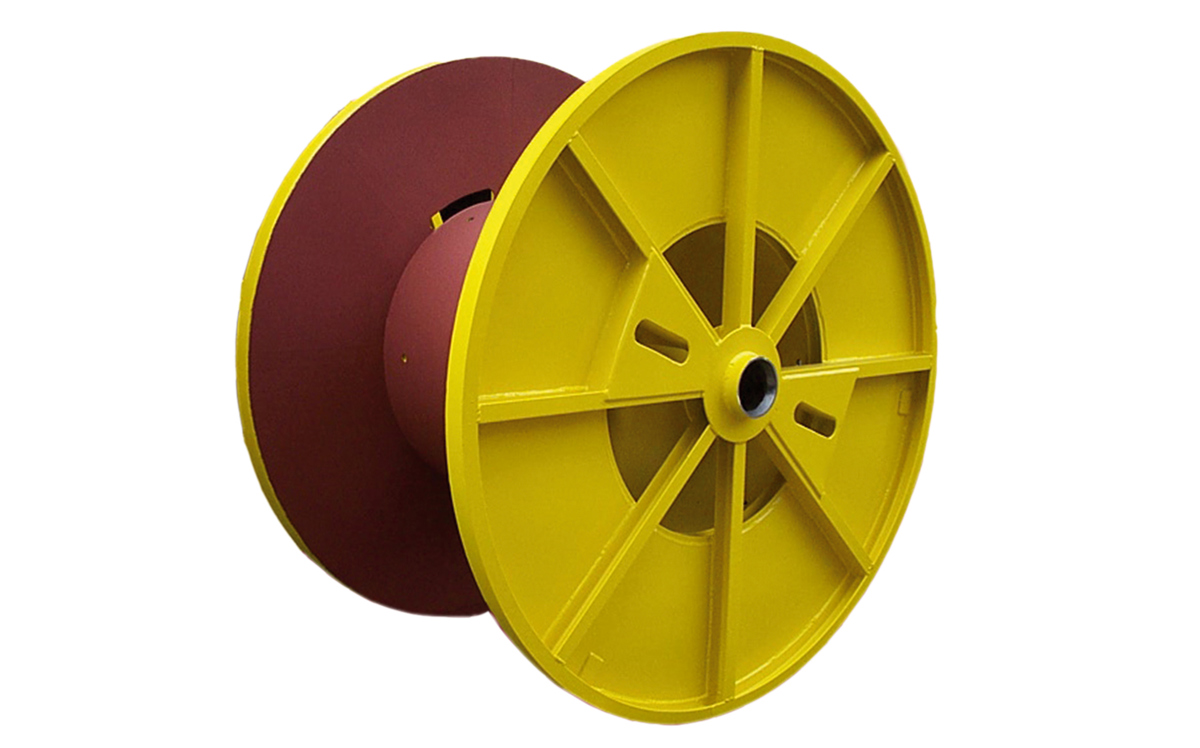

Process and Shipping – Flat Sided


Pentre Group Flat Sided Process and Shipping Drums are available in a wide range of both Metric and Imperial flange diameters, from 1000mm upwards, reels are manufactured to DIN 46395 , DIN 4639, or to your own bespoke requirements.



Our in-house design team continue to exceed the demands of today’s modern production requirements, with innovative and cost effective product developments.

Suitable for use across all sectors of the Wire & Cable Industry

All Pentre Group reels are manufactured from high quality, certified materials and are welded by MIG process, with all welds and weld preparations conforming to BS5135.



Precision engineered to meet all loads imposed by specified operations the flat sided design makes them heavier than our fluted flange range.

Drums are finished in our standard paints or to your own requirements.

  • Non standard sizes available
  • Manufactured in stainless steel, aluminium or galvanised steel
  • Perforated flanges/barrells for all curing processes
  • Statically balanced
  • Removable or hardened centre bosses to exact requirements
  • Specified lifting points, or rim lifting, lifting beams designed and manufactured to suit
  • Custom design drive arrangements
  • Neoprene lined winding surface
  • Entry slot-in flange
  • Special surface finishes are available
Click here to view DIN 46391 Technical Data

Product Dimensions


Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • d3 = Outside diameter
  • d4 = Bore diameter
  • d5 = Drive hole/ Pin diameter
  • e1 = Drive radius
  • L1 = Through bore
  • L2 = Traverse
Product Code d1 d2 d3 d4 d5 e1 l1 l2
FDT/1000 1000 500 102 80 40 160 750 630
FDT/1120 1120 560 102 80 40 160 850 710
FDT/1250 1250 630 102 80 40 160 950 800
FDT/1400 1400 710 102 80 63 300 1060 900
FDT/1600 1600 800 102 80 63 300 1180 1000
FDT/1800 1800 1000 125 100 63 300 1320 1120
FDT/2000 2000 1120 125 100 63 300 1500 1250
FDT/2240 2240 1250 160 125 63 300 1700 1400
FDT/2500 2500 1500 160 125 63 300 1900 1600
FDT/2800 2800 1800 185 140 63 300 2120 1800
Click here to view Additional Specifications

Key

  • Ksr= Run out of barrel radial
  • SSr= Run out of flange radial
  • SSx= Run out of flange axial
Type No. Load Ksr Ssr Ssx
FDT/1000 1000 3.0 3.0 3.0
FDT/1120 1500 3.0 4.0 3.0
FDT/1250 2000 4.0 5.0 4.0
FDT/1400 3000 5.0 5.0 4.0
FDT/1600 4000 5.0 5.0 6.0
FDT/1800 5500 6.0 7.0 7.0
FDT/2000 7500 7.0 7.0 7.0
FDT/2240 10500 9.0 9.0 9.0
FDT/2500 14000 9.0 9.0 9.0
FDT/2800 18000 9.0 11.0 12.0
