Welding Wire Reels

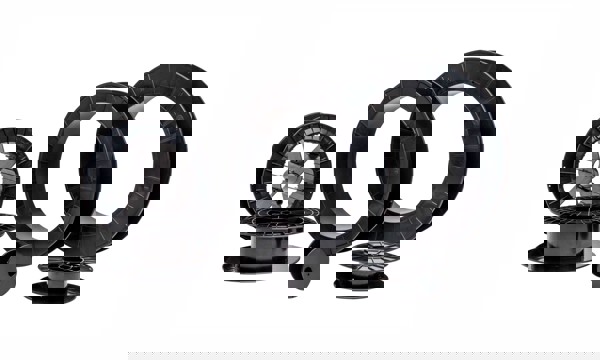

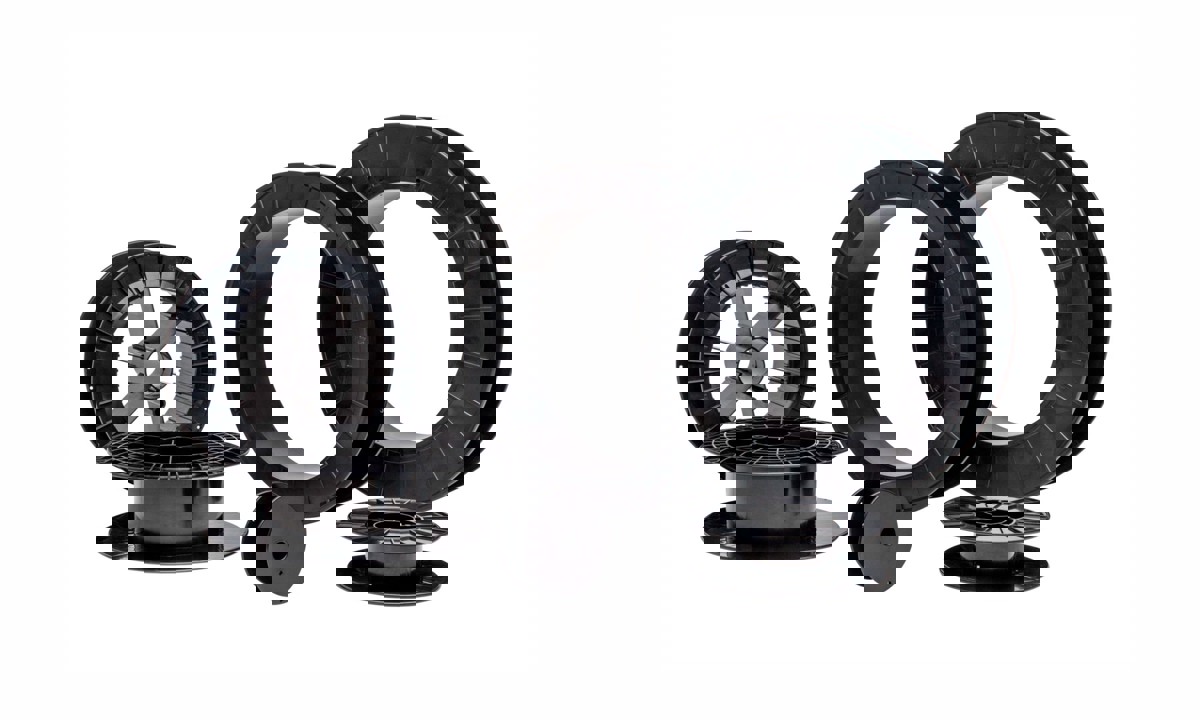

Pentre Group Welding Wire Reels (DIN 8559) are designed for packaging CO2 and Argon Welding Wires. Their sturdy construction means that they can be adapted for more arduous applications, such as stainless steel.

  • Suitable for use across a wide range of products

Generally manufactured from Acrylonitrile Butadiene Styrene (ABS), for additional strength.

  • Other materials or colours are available on request
Click here to view Technical Data

Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • d3 = Bore dimension
  • d4 =Drive hole diameter
  • e1 = Drive radius
  • L1 = Overall dimension
  • L2 = Traverse
Product Code d1 d2 d3 d4 l1 l2 e1
100mm WW Spool 100 38 16 – 45 38 –
200mm WW Spool 200 102 51.5 10 55 45 44.5
Mk4 Argonaut 300 208 51.5 10 103 90 44.5
Mk5 Argonaut 300 180 51.5 10 103 90 44.5
SH390K (L Rim) 400 310 305 – 90 80 –
SH460K (LL Rim) 460 318 305.1 – 105 91.5 –



All measurements and weights as stated on this drawing are approximate figures.
Tolerances and deviations as customary in this trade are reserved.

Click here to view Delivery Specifications
Product Code Per pallet Pallet size Spool mass Pallet wght
100mm WW Spool 180 Boxes 75g 14kg
200mm WW Spool 768 1000×1200 220g 180kg
Mk4 Argonaut 200 1000×1200 640g 155kg
Mk5 Argonaut 200 1000×1200 610g 155kg
SH390K (L Rim) 180 1150×1150 650g 150kg
SH460K (LL Rim) 120 1000×1200 1650g 250kg
