Medical Tubing Reels

Description

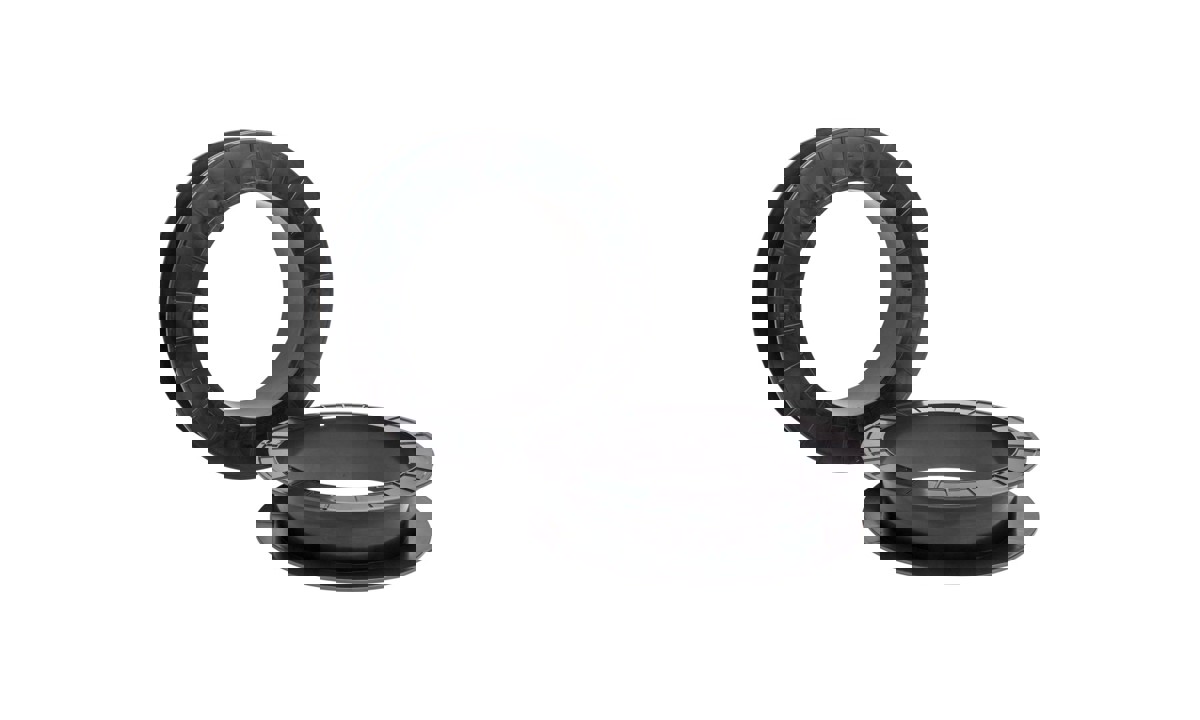

Pentre Group Medical Tubing Reels are designed for the safe packaging of delicate medical tubes. Molded from the highest grade ABS, in black or custom colours, they offer considerable benefits over alternatives such as cardboard. Their smooth sealed surfaces, superior durability, dimensional accuracy and moisture-resistance make them more hygienic, as they remain dust and contaminant free.

Products

Suitable for use across a wide range of medical tubing

Specifications

Generally manufactured from Acrylonitrile Butadiene Styrene (ABS), to avoid the release of fibres.

Options

Other materials or colours are available on request

Click here to view Technical Data

Key

d1 = Flange diameter
d2 = Barrel diameter
d3 = Bore dimension

d4 =Drive hole diameter
e1 = Drive radius

L1 = Overall dimension
L2 = Traverse

Product Code	d1mm	d2mm	d3mm	d4mm	l1mm	l2mm	e1mm
SH390K (L Rim)	400	310	305	–	90	80	–
SH460K (LL Rim)	460	318	305.1	–	105	91.5	–

All measurements and weights as stated on this drawing are approximate figures.
Tolerances and deviations as customary in this trade are reserved.

Click here to view Delivery Specifications

Product Code	Per pallet	Pallet size	Spool mass	Pallet wght
SH390K (L Rim)	180	1150×1150	650g	150kg
SH460K (LL Rim)	120	1000×1200	1650g	250kg
