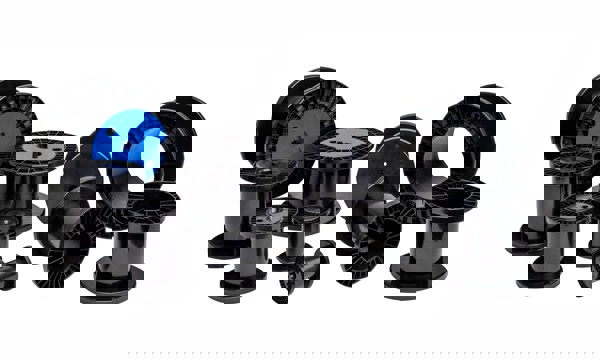

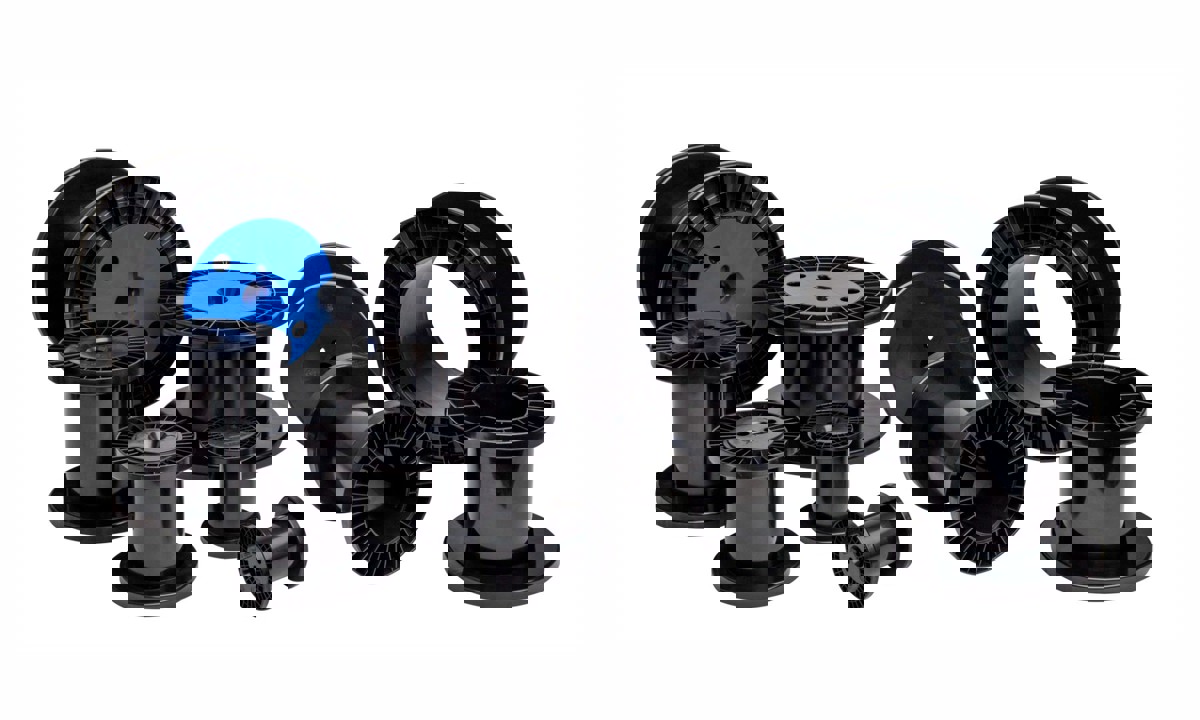

Delivery Spools


Pentre Group Cylindrical Barreled Delivery Spools have a high tensile strength and excellent flange rigidity, which gives a high degree of accuracy – essential when winding finer gauges of wire.

Suitable for use across a wide range of products including:

  • Bare copper
  • Aluminium
  • Magnet
  • Special alloys
  • Stainless steel
  • Monofilaments
  • Fine wires
  • Insulated wires

Reels are as standard manufactured from ABS Recycled Industrial Black, other material available on request. All reels are designed and developed in conjunction with the IEC 60264-2-2 standard along with customers, end users and machine manufactures.

In this way Pentre are able to offer reels which correspond to the precise requirements of the application and process.

Please note: Reels are on line inspected for dimensional accuracy and reel mass only.

  • Various bore sizes available
  • Heavy Duty 355 DWF (Double Walled Flange) available for demanding applications
  • Other materials are available on request
Click here to view Technical Data

Key

  • d1 = Flange diameter
  • d2 = Barrel diameter
  • d3 = Bore dimension
  • d5 = Drive hole diameter
  • d6 = Wire hole diameter
  • t1 = Depth of bore to outside face
  • t2 = Flange depth
  • e1 = Drive hole PCR
  • L1 = Overall dimension
  • L2 = Traverse
Product Code d1 d2 d3 d4 d5 d6 l1 l2 e1
DIN100mj 100 63 16 24 7 2 100 80 20
DIN125mj 125 80 16 24 7 3 125 100 20
DIN160mj 160 100 22 34 13 3 160 128 32
DIN200mj 200 125 22 or 36 34 13 3 200 160 32
DIN200 Body 200 125 118 – – – 200 160 –
DIN250mj 250 160 22 or 36 34 13 4 200 160 32
DIN250 Body 250 160 150 – – – 200 160 –
DIN355mj 355 224 36 60 26 5 200 160 80
DIN355 Body 355 224 220 – – – 200 160 –
DIN355HD 355 224 36 60 26 5 200 160 80



All measurements and weights as stated on this drawing are approximate figures.
Tolerances and deviations as customary in this trade are reserved.

Click here to view Delivery Specifications
Product Code Winding vol Per pallet Pallet size Mass Pallet wght
DIN100mMJ 379 boxes euro 125g 230kg
DIN125MJ 725 boxes euro 200g 200kg
DIN160MJ 1568 567 1000×1200 250g 225kg
DIN200MJ 3063 336 1000×1200 600g 225kg
DIN250MJ 4637 300 1000×1200 1050g 330kg
Din355MJ 9531 108 1000×1200 1850g 225kg
Din355HDuty 9531  – – 3200g –
