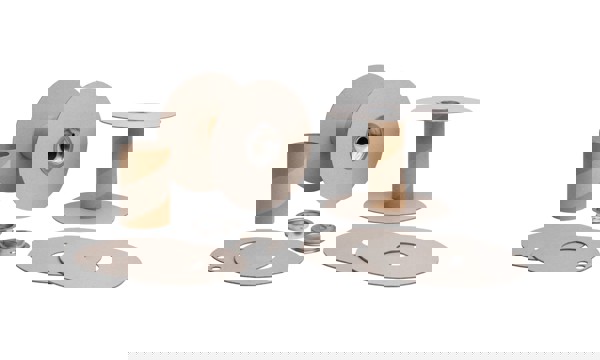

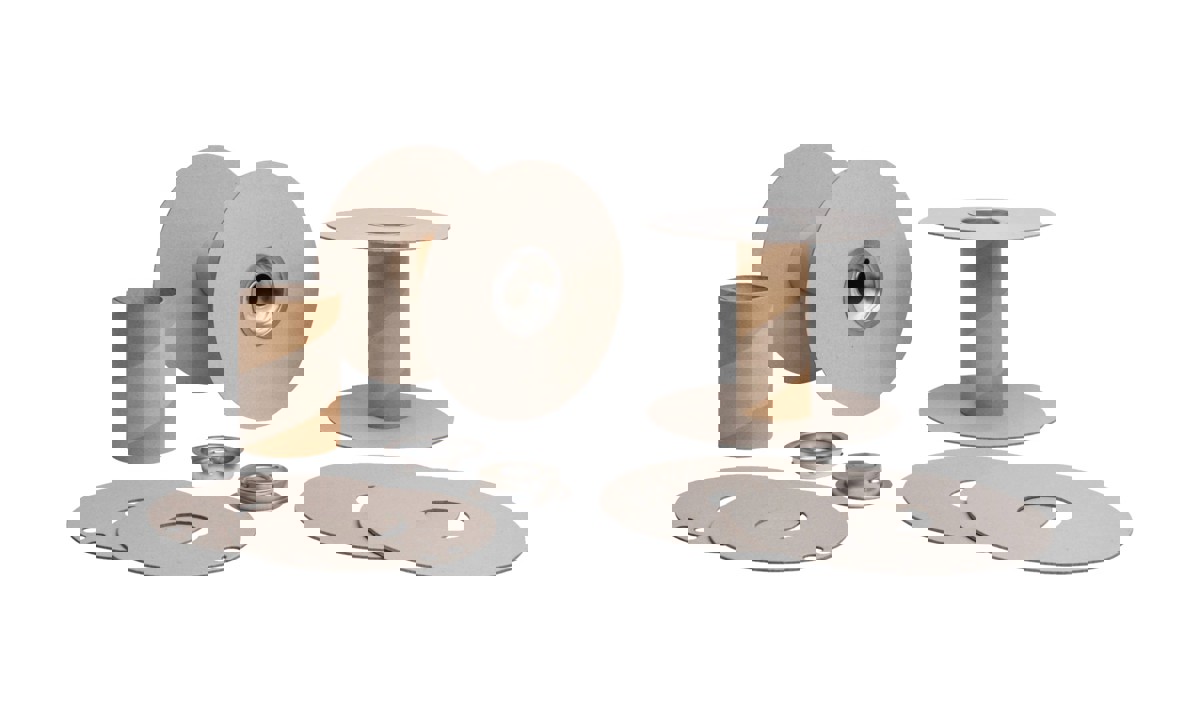

Easiform Cup Reels


Particularly designed for packing lightweight products, where pressure on the flanges are not excessive. Pentre Group Easiform Cup Reels are a cost effective, light weight and versatile reel.



Easy to assemble on site; simply push the cups through the centre hole of the flanges, for a secure fit.

Suitable for use across a wide range of products including:



  • Electric terminal strips
  • Rope
  • Sealing compounds
  • Various textiles

Flanges can be constructed from a variety of cardboard, wood and plastic, with cardboard barrels. Cup plugs are available tin plate or plastic.

  • Flange can be printed with your company name and logo.
Click here to view Technical Data

Product Dimensions


Key

  • A = Flange diameter
  • B = Barrel diameter
  • C = Barrel length
  • D = Flange thickness
Flange Materials A B C D
Unlined Cardboard 115 to 403 70 52 to 152 2 to 4
White Lined Cardboard 115 to 403 76 52 to 152 2 to 4
Yellow Lined -Cardboard 115 to 403 76 52 to 152 2 to 4
Plywood 115 to 403  76 52 to 152 3
MDF 115 to 403  76 52 to 152 3
Hardboard 115 to 403  76 52 to 152 3
