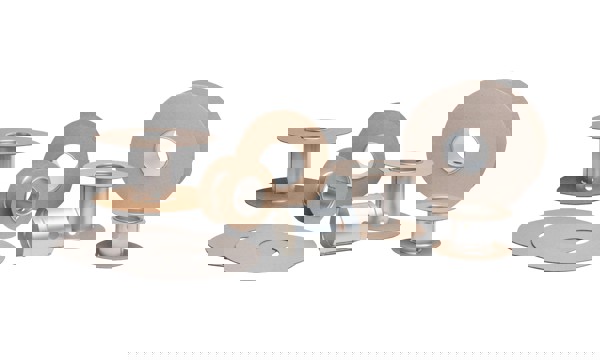

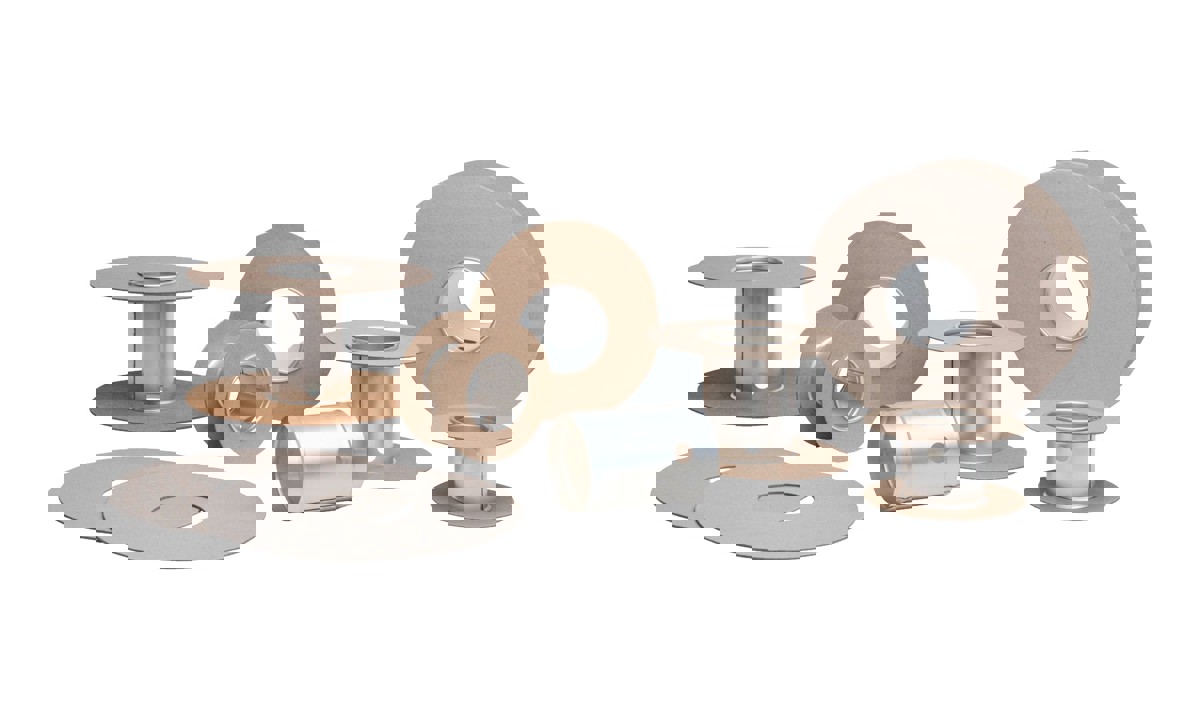

Beaded Metal Cylinder Reels


Cost effective, light weight, yet sturdy Pentre Group Beaded Metal Cylinder Reels are suitable for packing a wide range of products including, electric cable, rope, sealing compounds and various textiles.



The beaded metal cylinder curls back, locking to the outside face of the flange, providing a secure fit. Reels can be supplied ready assembled or in kit-form, for assembly on site.

Suitable for use across a wide range of products including:



  • Electric cable
  • Ropes
  • Sealing compounds
  • Textiles

Flanges can be constructed from a variety of cardboard, to size. Barrels are typically made from tinplate.

  • Flanges may be printed with your company name and logo
  • MDF or hardboard flanges available
Click here to view Technical Data

Product Dimensions


Key

  • A = Flange diameter
  • B = Barrel diameter
  • C = Barrel length
  • D = Flange thickness
Flange Material A B C D
Cardboard 115 to 403 70/75/95 52 to 152 1.8 to 4
MDF 115 to 403 70/75/95 52 to 152 1.8 to 4
Hardboard 115 to 403 70/75/95 52 to 152 3
